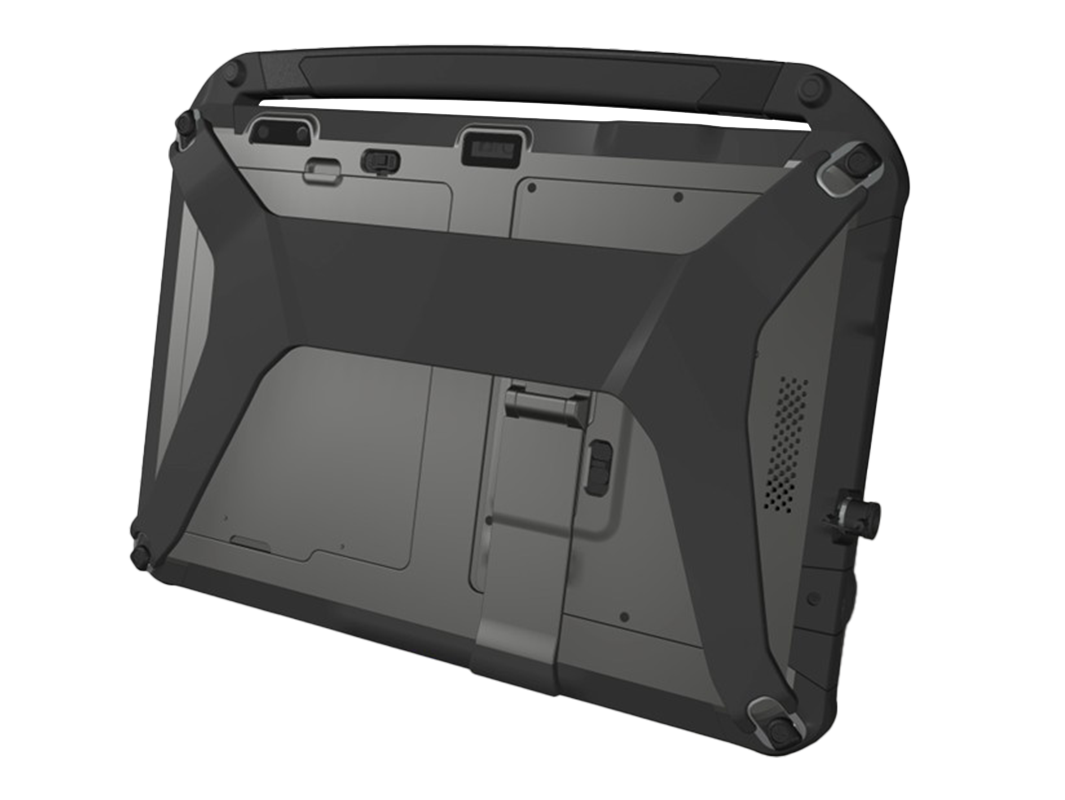

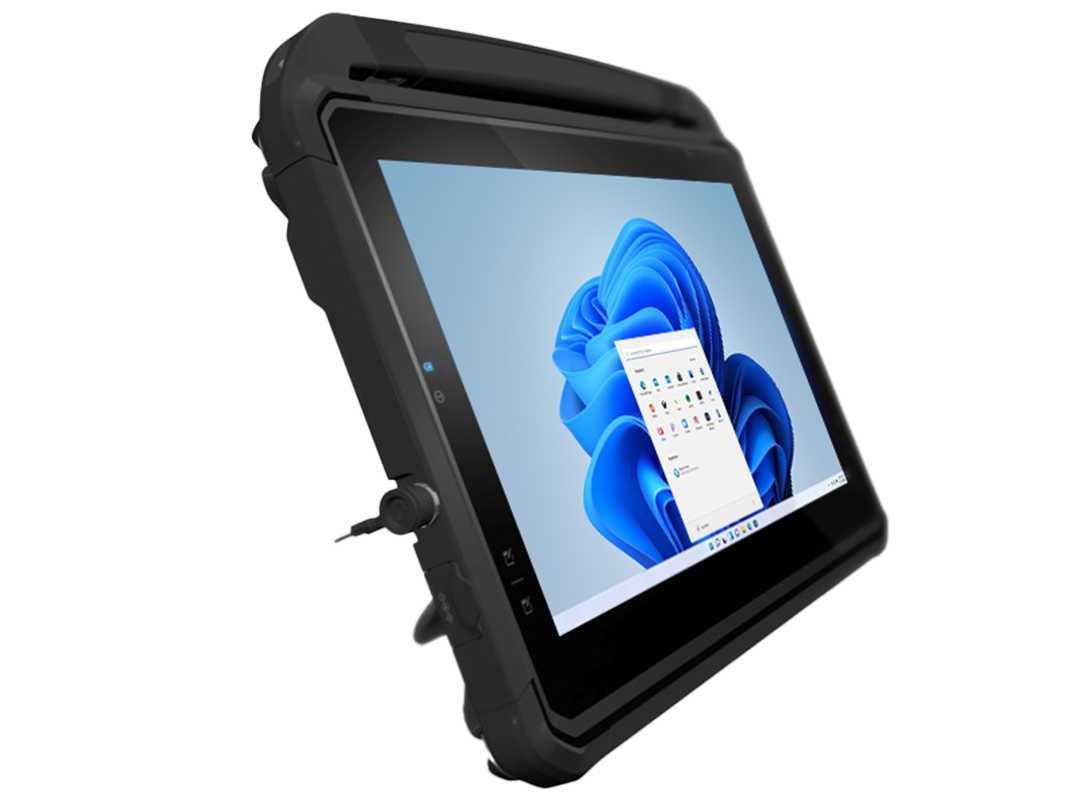

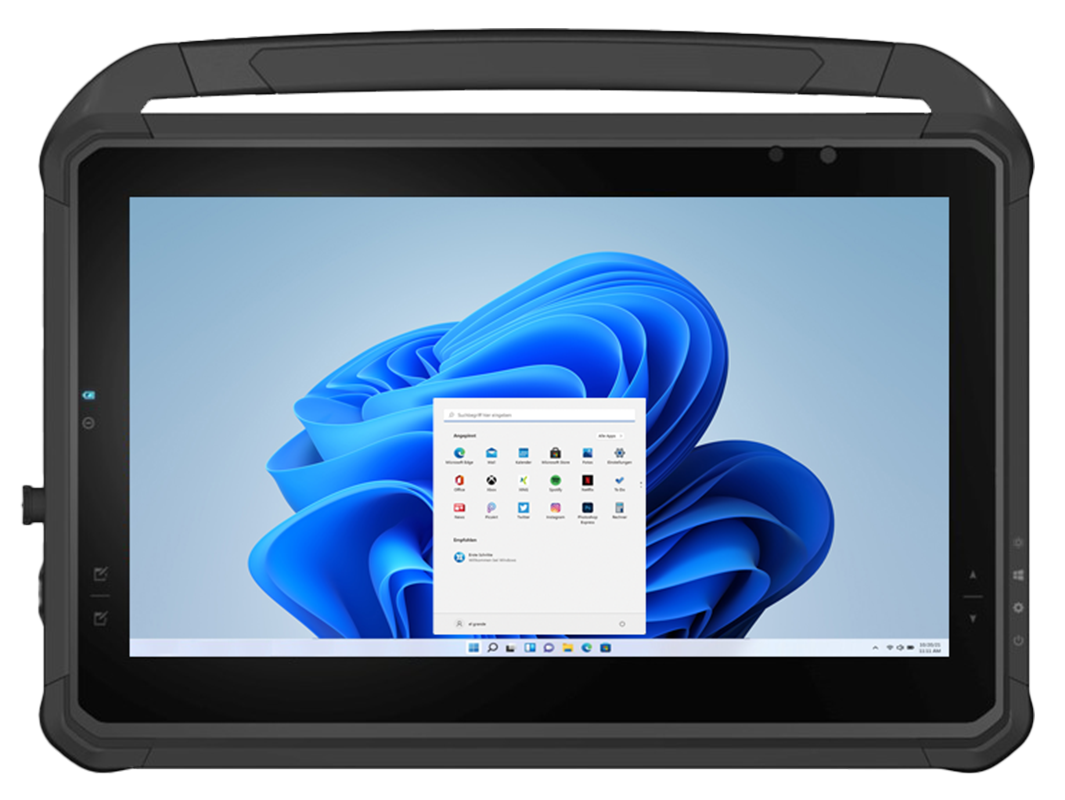

DT312PA Rugged Tablet

Slim, Rugged, Multi-functional Wireless Computing

The DT312PA Rugged Tablet features the integration of high-brightness 11.6" touchscreen and a high-performance, energy-efficient Intel_® Core™ Ultra processor within a slim, lightweight, durable package. With a built-in Wi-Fi module as well as optional front/ back cameras, smart card/CAC reader, barcode scanner and GNSS data capture modules, this robust tablet offers seamless information capture and transmission for improved workflow. Rated IP65, MIL-STD-810H/461G certified with a wide temperature range, the DT312PA Rugged Tablet provides reliable operation in harsh, mission-critical environments.

Product Configurator

Features

11.6” sunlight-readable touchscreen, digital pen support
Intel_® Core™ Ultra 5/7 processor
Microsoft_® Windows_® 11 IoT Enterprise operating system
NIST compliant BIOS available
Hot-swappable battery for 24/7 operation
IP65-rated for water and dust resistance
MIL-STD-810H for shock and vibration protection
MIL-STD-461G for EMI and EMC tolerance
Slim keyboard option for 2-in-1 applications
Quick access SSD

Major Options

5 MP front camera and 13 MP back camera
4G LTE/5G
GPS module
2D barcode scanner (reads 1D and 2D)
Smart card/CAC reader

*4G LTE/5G module, 2D scanner and GPS cannot be built onto same device.

Specifications

System

CPU

Intel_®Core™ Ultra 5 processor 225U, 12 core (up to 4.80 GHz)
Intel_®Core™ Ultra 7 processor 255U, 12 core (up to 5.20 GHz)
RAM

Ultra 5: 16GB LPDDR5
Ultra 7: 32GB to 64GB LPDDR5
* The memory is embedded. Alternative configurations are available by special order with MOQ
Storage

512GB to 2TB
*Support quick access SSD function to easily replace the SSD without opening the back cover
Operating System

Microsoft_® Windows_® 11 IoT Enterprise
NIST Compliance

NIST compliant BIOS available
Display

11.6” sunlight-readable touchscreen, digital pen support
Display Resolution

1920 x 1080
Microphone

Built-in microphone with DSP for real-time video streaming
Speaker

Built-in speaker
Buttons

1 x power button, 2 x brightness buttons, 5 x programmable buttons

Network Interface

WLAN

Wi-Fi 802.11ax, 2.4/5/6 GHz three band
BT

5.3

I/O Ports

USB Port

1 x USB3.2 (Type-A), 1 x USB3.2 latest USB/charging
Ethernet Port

1 x Ethernet 10/100/1000MB Base-T LAN
DC IN Jack

1
24-pin Fischer Minimax Connector (Optional)

1 x USB2.0, COM port, RJ45, Power 5A (in), and Power 2A (out)

MECHANICAL AND ENVIRONMENTAL

AC/DC Adapter

Input: 100 to 240V AC; Output: 19V DC, 3.42A (65W)
Battery Pack

43W Hot-swappable battery (11.4V, 3800mAh)
(Optional) 60W Hot-swappable battery (11.4V, 5400mAh)
(Optional) 90W Hot-swappable battery, (11.4V, 8000mAh)
Enclosure

ABS + PC plastic and magnesium-aluminum alloy
Dimensions (H x W x D)

8.3 x 12.4 x 0.78 in/212 x 316 x 20 mm
Weight

3.43 lbs/1.55 kg
Durability

IP65, MIL-STD-810H and MIL-STD-461G certified
Regulatory

CE, FCC Class B, IC, CB, RCM, IEC 60601-1, IEC62680, EPEAT, Energy star 8.0
Temperature

Operation*: -10°C to 60°C (14°F to 140°F)
Storage: -50°C to 70°C (-58°F to 158°F)
Humidity

0% to 90% non-condensing

MAJOR OPTIONS SPECS

Barcode Scanner

2D barcode scanner (reads 1D and 2D)
Camera

5 MP front camera and 13 MP back camera
GNSS

GPS
Mobile Broadband

4G LTE/AWS
Smart Card/CAC Reader

Half slot (supports ISO 7816 T=0, T=1); 1.8V/3V/5V smart card

Accessories

Sealed IP68 USB Keyboard

Built to meet strict military standards, this keyboard is designed to withstand extreme conditions that typical consumer-grade keyboards cannot endure.

Sealed IP68 BT Keyboard

Built to meet strict military standards, this keyboard is designed to withstand extreme conditions that typical consumer-grade keyboards cannot endure.

Slim Detachable Keyboard

Slim and lightweight with magnetic hinge to effortlessly attach/detach to the DT312PA rugged tablet.

Mini Keyboard

This compact, rugged keyboard with a built-in stand delivers stability and efficiency in demanding environments.

Tablet Mount Cradle

Offers Tablet storage and security with power supply and I/O ports.

Battery Gang Charger

Simultaneously charge 6 external batteries.

Digital Pen

Dimensions: 9.7mm x 140.7mm; Weight: <25g; Battery: 1 AAAA.

Desktop Charging Cradle

With I/O ports supporting power, USB, COM, and Ethernet.

Tablet Mount Cradle

Offers Tablet storage and security with power supply and I/O ports.

Battery Charger Kit with AC Adapter and Power cord

Recharges battery pack "offline" without affecting tablet use.

Screen Protector

User-replaceable film screen protector to protect the display from scratches and repeated use. Comes with microfiber cleaning cloth and dust-absorber to make the applying process an easy task.

High Capacity Battery Pack

Hot-swappable, 43W, 60W or 90W.

MIL-STD-461G AC/DC Power Adapter

◆ Input Voltage: 100 to 240Vac; Output Voltage: 19V, 4.74A

◆ MIL STD 461G certified (Choice of North America, UK or EU power cord).

Handle Kit

Designed to securely hold the Tablet. Made of soft plastic, easy removal when necessary. Factory installed only.

Carrying Case

Open-to-use design with foldable tabletop stand. Made of 1680 denier nylon fiber with water-repellent coating.

Shoulder Strap for Tablets

Padded for comfort, provides convenient mobile operation, strap is adjustable and can be attached to the Rubber Grips.

X-Handstrap

Designed to securely hold the Tablet. Made of soft plastic, easy to clean. For left- or right-handed users.

Screen Protector

User-replaceable film screen protector to protect the display from scratches and repeated use. Comes with microfiber cleaning cloth and dust-absorber to make the applying process an easy task.
